20. Structural Planning Process

20.5 Load Path Diagram ( Gravitational Load II )

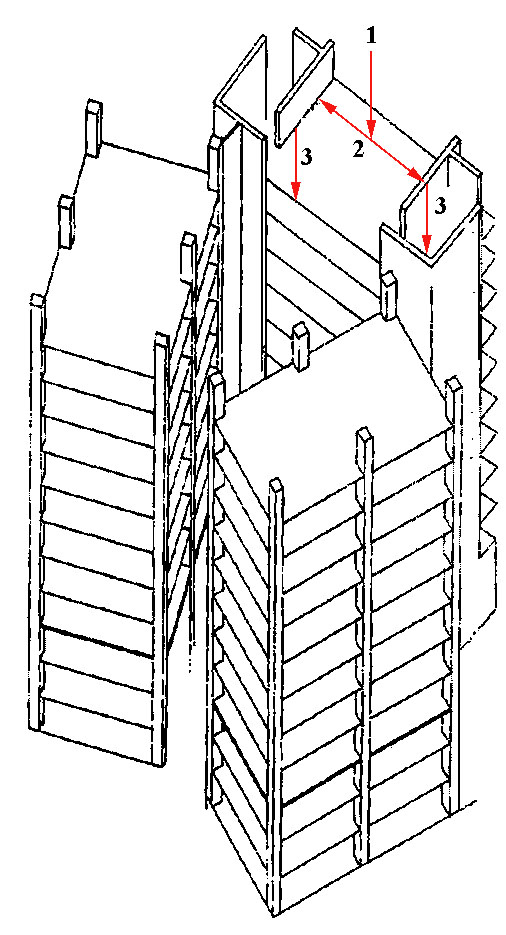

Vertical Loadpath Point Load applied to the roof slab Slab span to NS to the beam and beam span to EW to the end wall The end wall acts as :vertical stable rectangle" - shear walls, to bring the load down to the ground
