1. Analysis of Site Environment
• Investigate site access and circulation
• Examine surrounding buildings and neighbourhood settings
• Study climatic conditions, ventilation, air quality and noise impacts
• Identify the locations of utility connections (electricity, water, drainage, towngas, telecomm)
2. Study of Client Requirements
• Identify client requirements and major project goals
• Evaluate any constraints and limitations
• Study design requirements and criteria (for building services systems)
• Identify the scope of building services provisions
• Indicate any feasibility or further studies required
3. Key Building Services Systems
• Design objectives and design criteria
• Relevant local regulations and design practices
• System description and design features (specific to this project)
• Possible design options and system selection

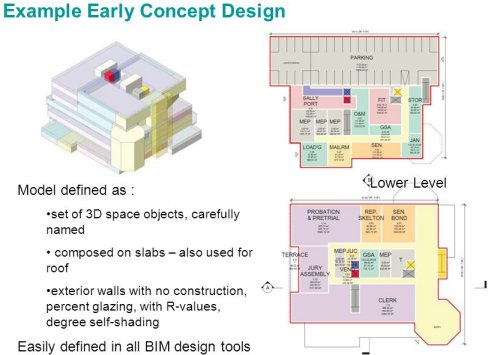

4. Conceptual Design and Outline Proposals
• Conceptual diagrams and simplified schematics
• Load estimation (rough) and possible zoning
• Arrangement of utility connections (obtain authority approval, if needed)
• Planning of major plant rooms and services distribution
Resources:
Design guides:
- BSE Design Guidelines [PDF]
- Considerations for Building Services Systems at Early Design Stages [PDF]
- Design Documentation Guidelines (New Zealand Construction Industry Council) [PDF]
- Design Maps [PDF]
- HVAC
Design Map
- Electrical Services Design Map
- Public Health Engineering Design Map
- Architectural
Design Process http://www.lcfisher-architect.com/process
- - Site
Analysis
- -
Bubble Diagrams
- - Massing Models
- Schedule
of accommodation http://www.designingbuildings.co.uk/wiki/Schedule_of_accommodation
- - Floor
areas & arrangement of spaces
- Geotechnical/Structural:
concept design https://www.steelconstruction.info/Concept_design
- - Make
assumptions & sketch plans for the concept
design
- Building
Services Engineering: key issues
- -
Sketch drawings & concept diagrams/schematics
to convey design ideas & options
- -
Preliminary plant room requirements & services
distribution routes
- -
Identify utility connections
- - Identify applicable codes & standards
- -
Feasibility of renewable technologies
- Churcher, D., Ronceray, M. and Sands, J., 2018. Design Framework for Building Services, 5th ed., BG 6/2018, Building Services Research and Information Association, Bracknell, Berkshire, England.
- Hall, F.
and and Greeno, R., 2013. Building Services
Handbook, 7th ed., Butterworth-Heinemann,
Oxford, U.K.
- Hawkins,
G. (ed.), 2011. Rules of Thumb: Guidelines for
Building Services, 5th ed., Building Services
Research and Information Association, Bracknell,
Berkshire, England.
- Pennycook,
K., 2007. Design Checks for HVAC: A Quality
Control Framework, BSRIA Guide BG 4/2007, 2nd
ed., Building Services Research and Information
Association, Bracknell, Berkshire, England.
- Pennycook,
K. 2006. Design Checks for Electrical Services,
Application Guide BG 3/2006, Building Services
Research and Information Association, Bracknell,
Berkshire, England.
- Pennycook, K. 2006. Design Checks for Public Health Engineering, Application Guide BG 2/2006, Building Services Research and Information Association, Bracknell, Berkshire, England.
- Tudor, R., 2017. Building Services Reports, BG 71/2017, Building Services Research and Information Association, Bracknell, Berkshire, England.
- Concept design reports [PDF]
Feasibility study of BEAM Plus: [PDF] (prepared by Dr Ernest Tsang)
- 1. Select appropriate assessment scheme
- 2. Maximum credit applicable to the project
- 3. Check with the prerequisites and outline the design criteria for the project
- 4. Evaluate against BEAM Plus what the highest rating is achievable by current design and identify the limitations
- 5. Gap analysis on the current situation and the target rating
- 6. Review all potential solutions if the target rating cannot be achieved. Evaluate them against design and cost consideration
