14. Lighting Fittings / Layout
14.5 Lighting Fitting I

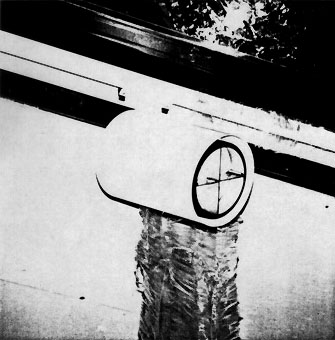

Track Light
Description :
Track light c/w ceiling mounted light track, 120W par 38 incandescent lamp, uva reduction filter, silver colour mirror reflector, white-coloured housing, integral 2a fuse, protection glass and all accessories.
Locations :
Usually founded in gallery and passageways
Uses :
Have the feature of giving a prestigious accent light for limitless end use, particularly recommended for displays, sculptures, passageways and whenever localized light effects are required.
Effects :
Silver colour mirror reflector gives high lighting intendity in the centre, which helps to highlight the displays and high concentration of light makes light distribution narrow. As the shield of the lights is rounded in shape. It gives a symmetric area.
Photometric Data
Wall-mounted Fluorescent Light
Description :
Wall mounted light fittings c/w 16W 2D lamp. Class II polycarbonate construction clear prismatic diffuser, integral control gear, and all necessary accessories. Typical double compact fluorescent energy saving lamps are used.
Location :
Usually founded in stairwell, mounted 7 feet above the floor.
Uses :
Widely used in areas security is important as it provides high levels of vetical illumination yet maintains low glare also highly recommended for lighting up the staircases because of its wide lateral throw for the light fittings, usually use polycarbonate lens rather than glass as it is far more precisely fabricated with better control. Moreover, it is more resistant to impact and damage than either glass or acrylic. Using polycarbonate also lets us reduce the numbers of parts involved in the lens. It is one piece with hinges and latches molded it. Moreover, the prismatic controller helps to provide diffuse light.
Effect :
With high level of vertical illumination and long lateral throw, light distribution is very wide, up to 180. With elongated shield, lighting effect is different along two axis.
Photometric Data
| Track Light used in the gallery | Wall-mounted fluorescent light in the stairwell |
 |
 |
