5. Roof Details

5.13 Water Tank Cover III (scale 1:2 )

The water tank is provided a cover for inspectation, for accessing and maintainance of the water tank. The cover is made of stainless steel so as to prevent it from rusting and thus reduce the maintainance cost.

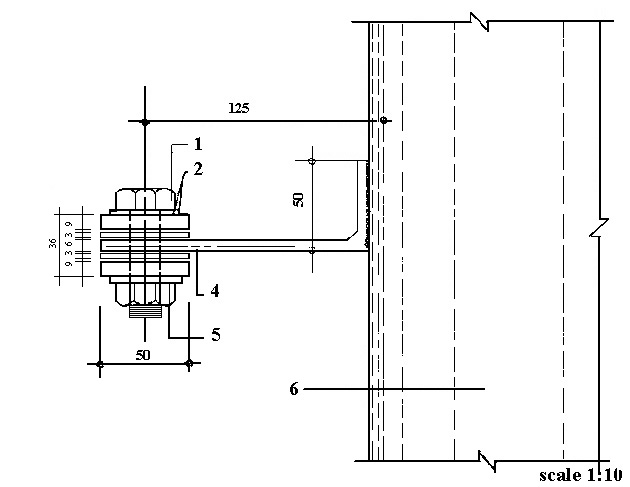

Legend :

1. 13mm bolt and nut
2. 3mm thick washers
3. 1.5mm gaps each approx.
4. 50x6mm thick horizontal S.S. hinge fully welded to cover plate
5. 50x9mm thick vertical S.S. hinges grouted in R.C. slab
6. S.S. cover plate

The hinge is made of stainless which is the same material as the water tank cover also because of prevent rusting.

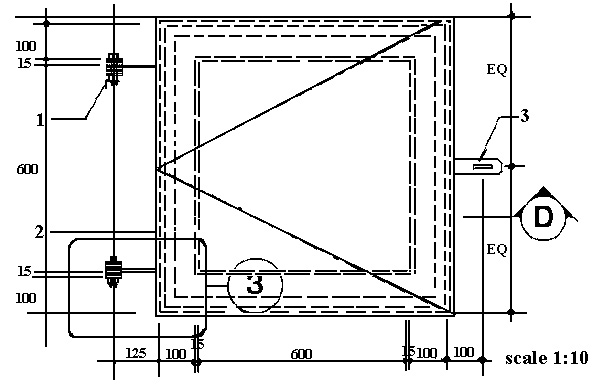

Legend :

1. S.S. hinges grouted in R.C.slab
2. 600x600 opening ( clear ) with 3mm thick S.S. cover plate
3. S.S. lock pad with hinge
